Detector choice:
recommended
Typical risks and properties

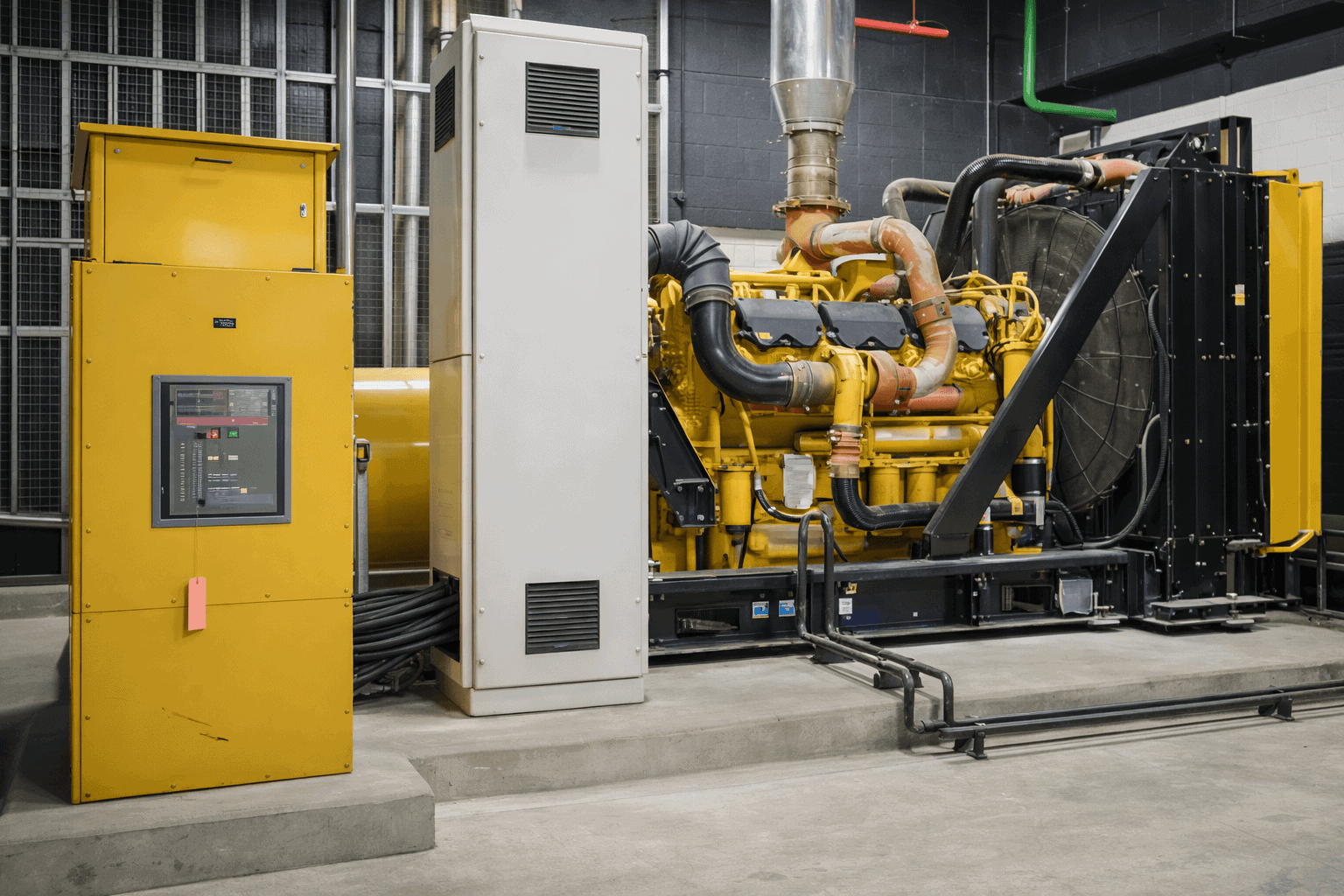

Typical features for generator rooms are:
- Hot surfaces of the engine and the exhaust system may ignite Fuel and/or Lubricants.
- Obstructions in the generator room are potential inhibitors so use at least two Flame detectors. Use at least four Flame detectors when voting is applied.
- Oil films may inhibit the Flame Detector in Diesel Generator Rooms.
Typical requirements
- Good false alarms immunity.
- Resistance to vibrations and shocks.
- High ventilation rates.
- Rugged Non-conductive housing material.
- Simple to install.
- Able to deal with temperature variations.
Detector choice
Recommended UV/IR Flame Detectors for Gas Generator Rooms. Recommended IR3 Flame Detectors for Diesel Generator Rooms.
